SKN870/16

155,93 $
Nessuna tassa

RECTIFICADORES DE POTENCIA

Última actualización

DatasheetSKN870/16

870A/1600V/1U

No identificado

Quantità
Non disponibile

  Política de seguridad

(Los productos cuentan con garantía limitada, por favor revisa nuestras condiciones)

  Política de entrega

(Envíos de 1-2 días hábiles para productos de stock)

Features

  • Rectifier Diode
  • Reverse voltages up to 3000 V
  • Capsule type metal-ceramic package with precious metal pressure contacts
  • Contact diameters 19 and 32 mm

Aplications

  • Applications
  • All-purpose high power rectifier diodes
  • SKN870 : High voltage grades available for industrial high power drives and medium traction applications
  • Cooling via heatsinks (double or single sided)
  • Non-controllable rectifiers
  • Free-wheeling diodes

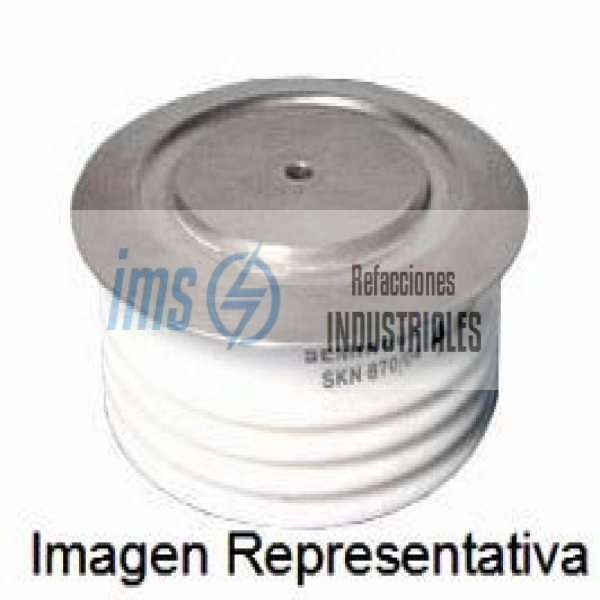

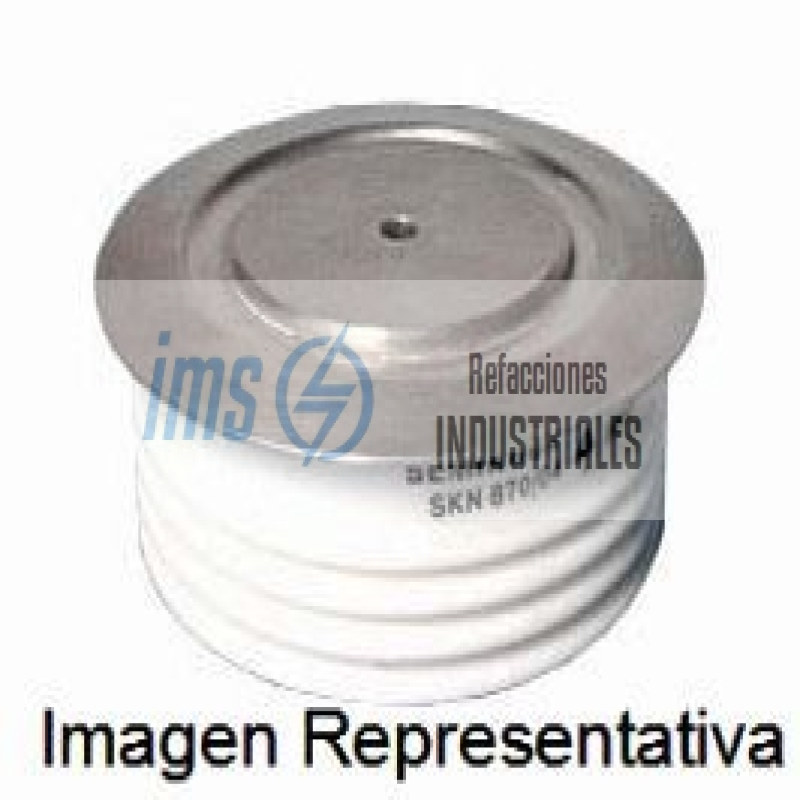

Semikron Standard Recovery Diodes, SKN870 Series

Semikron

SKN870/16

DIODE, DO-200AB, 1600V, 870A, STD ; Package Type; DO-200AB

Puck Size (h x dia.) in.; 1 x 2.25 inches

Vrrm (volts); 1600 Volts

IF (avg) Amps; 870 Amps

Ifsm Amps; 13000 Amps

I2T@60Hz (A2Sec); 850000

I2T@50Hz (A2Sec); 850000

Vfm (volts); 1.85 Volts

Junction Temp.; 302 Degrees F

Mounting Force; 13.5~16.5 kN ;

SKN870/16

Riferimenti Specifici

MPN
SKN870/16
