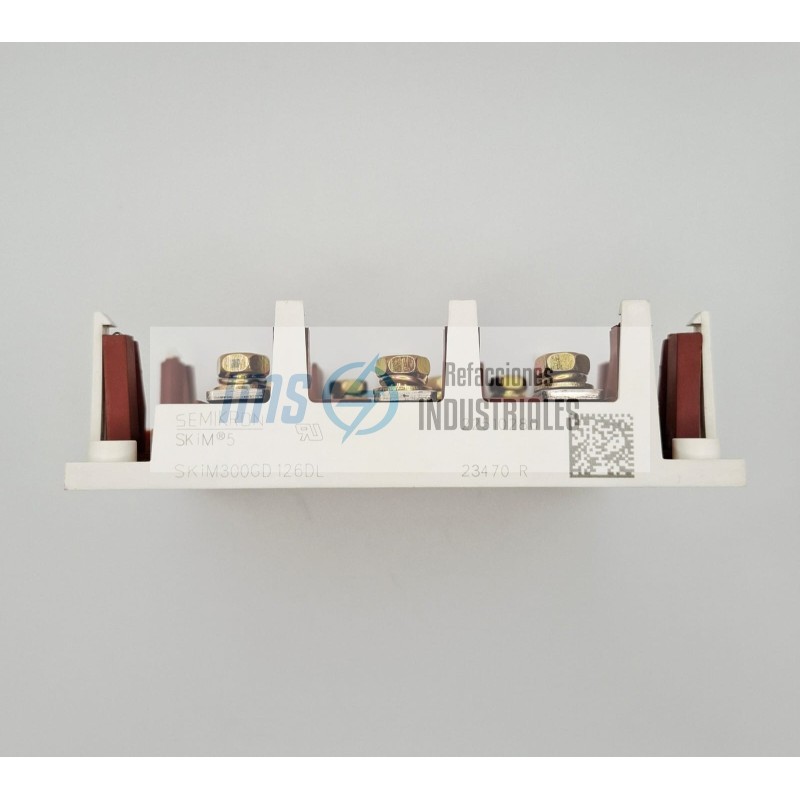

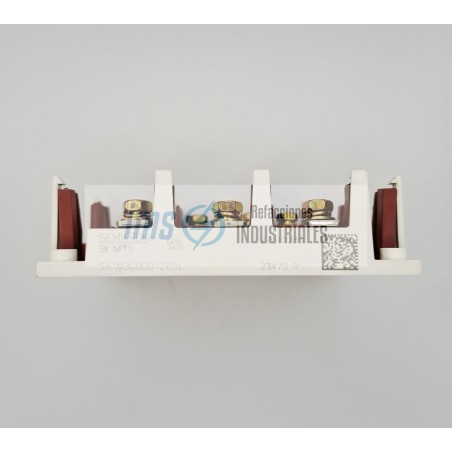

SKIM300GD126DL
770,59 $
Nessuna tassa
SKIM300GD126DL
Política de seguridad
(Los productos cuentan con garantía limitada, por favor revisa nuestras condiciones)
Política de entrega
(Envíos de 1-2 días hábiles para productos de stock)
Features
- IGBT MODULE
- Trench gate IGBT with field stop layer
- Low inductance case
- Fast & soft inverse CAL diodes
- Isolated by DCB (Direct Copper onded)
- ceramic plate
- Pressure contact technology for thermal cpnracts
- Spring contact system to attach driver PCB to the control terminals
- Integrated temperature sensor
Aplications
- Applications
- Switched mode power supplies
- Three phase inverters for AC
- motor speed control
- Switching (not for linear use)
Semikron IGBTs
Semikron
SKIM300GD126DL
IGBT ; Type; Six-Pack
Vces; 1200 Volts DC
Ic; 300 Amps
Vges +/-; 20
Ices Max; 3.6 MilliAmps
Vge(th) Min/Max; 5~6.5 Volts
Vce(sat) Max; 2.1 Volts
Height (mm); 32
Width (mm); 123
Depth (mm); 106.5 ;
SKIM300GD126DL
Riferimenti Specifici
- MPN
- SKIM300GD126DL
