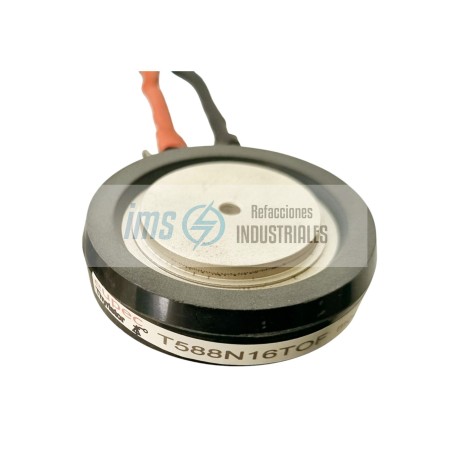

T588N16TOF

128,39 $
Aucune taxe

SCR - THYRISTOR CONTROL DE FASE SCR - THYRISTOR CONTROL DE FASE

PDF T588N16TOF

Características Eléctricas: 588A/1600V/1U

Marca: No identificado

Quantité
Rupture de stock

  Política de seguridad

(Los productos cuentan con garantía limitada, por favor revisa nuestras condiciones)

  Política de entrega

(Envíos de 1-2 días hábiles para productos de stock)

FeaturesAplicaciones
  • PHASE CONTROL THYRISTOR

Marca:

No identificado

Características electricas: 588A/1600V/1U

Infineon, Formerly Eupec Phase Control SCRs, T588N Series

Type : SCR,TO50/14,1600V,588A
Package Style TO-200AB-2
Vrrm (volts) 1600 Volts
Vdrm (volts) 1600 Volts
It (rms) Amps 1250 Amps
It (avg) Amps 588 Amps
Itsm Amps 9400 Amps
di/dt (A/microseconds) 200
dv/dt (V/microseconds) 1000
I2T@50Hz (A2Sec) 442000
Vtm (volts) 2.15 Volts
tq (microseconds) 250 MicroSeconds
Irrm Peak (mA) 50 MilliAmps
Idrm Peak (mA) 50 MilliAmps
Igt (mA) 250 MilliAmps
Vgt (volts) 2.2 Volts
Puck Size (h x dia.) in. .5x2
Junction Temp. 257 Degrees F
Mounting Force 10 kN
Diag. No. EUPC_SCR_DIAG_T50.14
Contáctanos para mas información sobre este u otros productos
ventas@ims-refacciones-industriales.com
T588N16TOF

Références spécifiques

MPN
T588N16TOF
