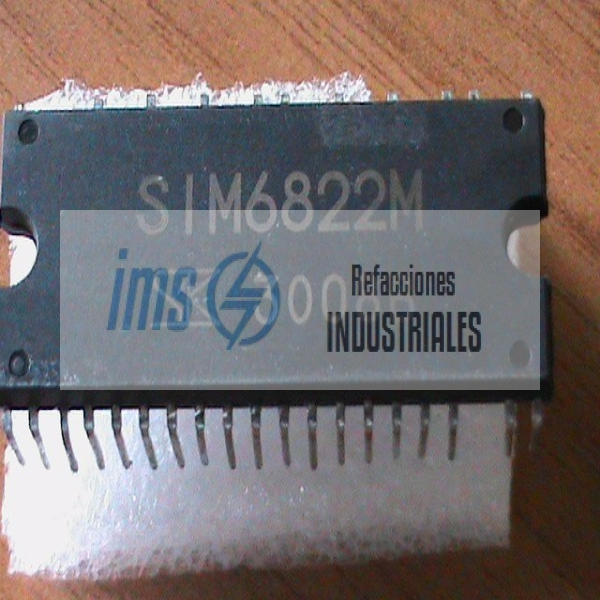

SIM6822M

• High Voltage 3-phase Motor Driver
• Built-in Bootstrap Diodes with Current Limiting Resistors (60 Ohms)
• CMOS-compatible Input (3.3 V or 5 V)
• Bare Lead Frame : Pb-free (RoSH Compliant)
• Isolation Voltage : 1500V V (for 1 min)
• UL-recognized Component (File No. E118037) (SIM6880M UL Reconition Pending)
• Fault Signal Output at Protection Activation (FO Pin)
• High-side Shutdown Signal Input (SD Pin)
• Protections Include :
• Overcurrent Limit (OCL): Auto-reset
• Overcurrent Protection (OCP): Auto-reset
• Undervoltage Lockout for Power Supply
• High-side (UVLO_VB) : Auto-restart
• Low-side (UVLO_Vcc) : Auto-restart
• Thermal Shutdown (TSD) : Ato-restart
• Features
• Each half-bridge circuits of a pre-driver circuit that is completely independent from the others
• Protection against simultaneous high and low-side tuming on
• Bootstrap diodes with series resistors for suppresing i

• Applications
• For motor drives as :
• Refrigerator Compressor Motor
• Fan Motor and Pump Motor for Washer and Dryer
• Fan Motor for Air Conditioner, Air Purifier, and Electric Fan

Marca:

No identificado

Características electricas: 5A/600V/1U
