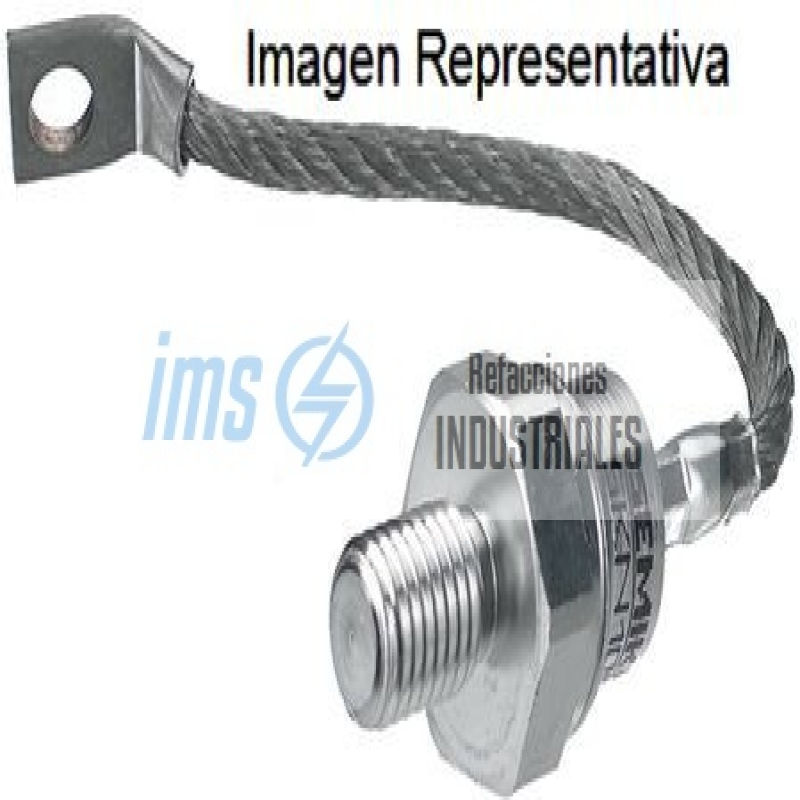

SKR100-12
search
  • SKR100-12

SKR100/12

$31.50
No tax

VARIOS

Última actualización

DatasheetSKR100/12

100A/1200V/1U

No identificado

Quantity
Out-of-Stock

  Política de seguridad

(Our products have limited warranty, please check our terms)

  Política de entrega

(Delivery 1-2 days for products in stock)

Features

  • Rectifier Diode
  • Reverse voltage up to 1800 V
  • Hermetic metal cases with glass insulators
  • Threaded studs ISO M12 , M16 x 1.5
  • SKN : anode to stud
  • SKR : cathode to stud

Aplications

  • Applications
  • All-purpose mean power rectifier
  • diodes
  • Cooling via heatsinks
  • Non-controllable and
  • half-controllable rectifiers
  • Free-wheeling diodes
  • Recommended snubber network :
  • RC: 0.25 uF, 50 Ohms, (P R = 2W)
  • Rp = 50kOhms (P R = 20 W )

Semikron Standard Recovery Diodes, SKN100 Series

Semikron

SKR100/12

DIODE, M12, 1200V, 100A, FWD, STD, M12X1.75 ; Package Type; DO-205AC (DO-30)

Polarity; Cathode Stud (Forward)

Vrrm (volts); 1200 Volts

IF (rms) Amps; 200 Amps

IF (avg) Amps; 100 Amps

Ifsm Amps; 1750 Amps

I2T@60Hz (A2Sec); 15000

I2T@50Hz (A2Sec); 15000

Vfm (volts); 1.55 Volts

Junction Temp.; 356 Degrees F

Mounting Force; 88.51 lbf-in

Stud Size; M12 x 1.75

Lead Type; Flexible

Lead Length FMS (inches); 6.5 Inches ;

SKR100/12

Specific References

MPN
SKR100/12
