CD631215B
$92.40
No tax
CD631215B
Política de seguridad
(Our products have limited warranty, please check our terms)
Política de entrega
(Delivery 1-2 days for products in stock)
Features
- Dual SCR Isolated Module
- Electrically Isolated Heatsinking
- DBC Alumina (AI0O3) Insulator
- Glass Passivated Chips
- Metal Baseplate
- Low Thermal Impedance for Improved
- Current Capability
- Quick Connect Gate Terminal with
- Provision for Keyed Mating Plug
- UL Recognized (E78240)
Aplications
- Applications
- Bridge Circuits
- AC & DC Motor Drives
- Battery Supplies
- Power Supplies
- Large IGBT Circuit Front Ends
- Lighting Control
- Heat & Temperature Control
- Welders

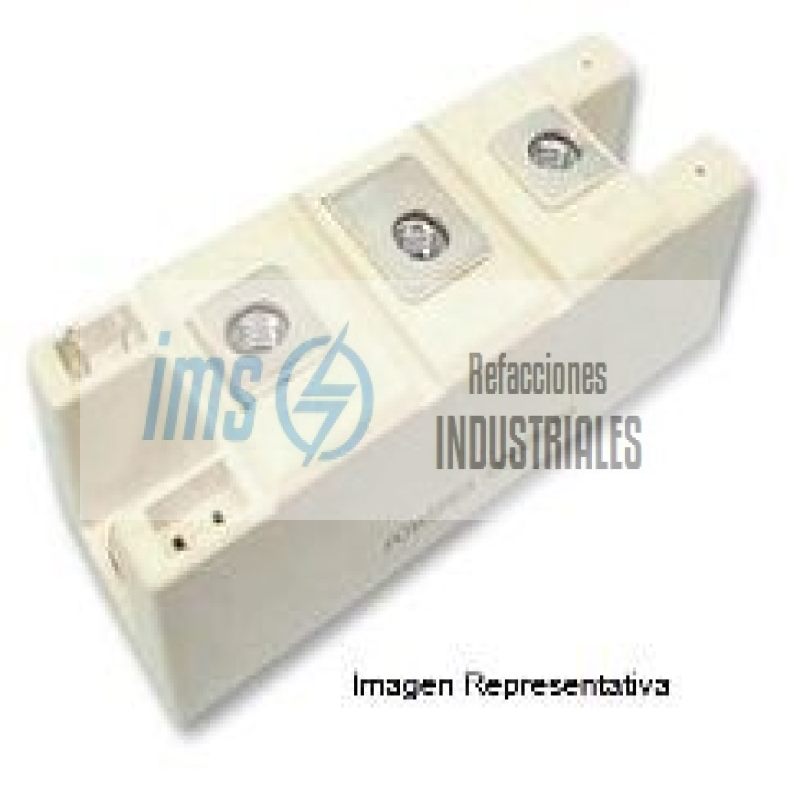

Powerex Standard SCR Power Modules, CD Series
Powerex
CD631215B
PMOD, DUAL-SCR, 1200V, 150A ; It (avg); 150 Amps
It (RMS); 235 Amps
Vrrm; 1200 Volts
Circuit; SCR Doubler w/aux Cathode
Height (mm) Nominal; 30 MilliMeters
Width (mm) Nominal; 34 MilliMeters
Depth (mm) Nominal; 94 MilliMeters
Igt; 150 MilliAmps
di/dt (Amps/MicroSec.); 200
dV/dt (Volts/MicroSec.); 1000
Aux. Cathode(s); Yes
Mounting Centers; 80 MilliMeters
Approvals; ULR
RoHS; Yes ;
CD631215B
Specific References
- MPN
- CD631215B
