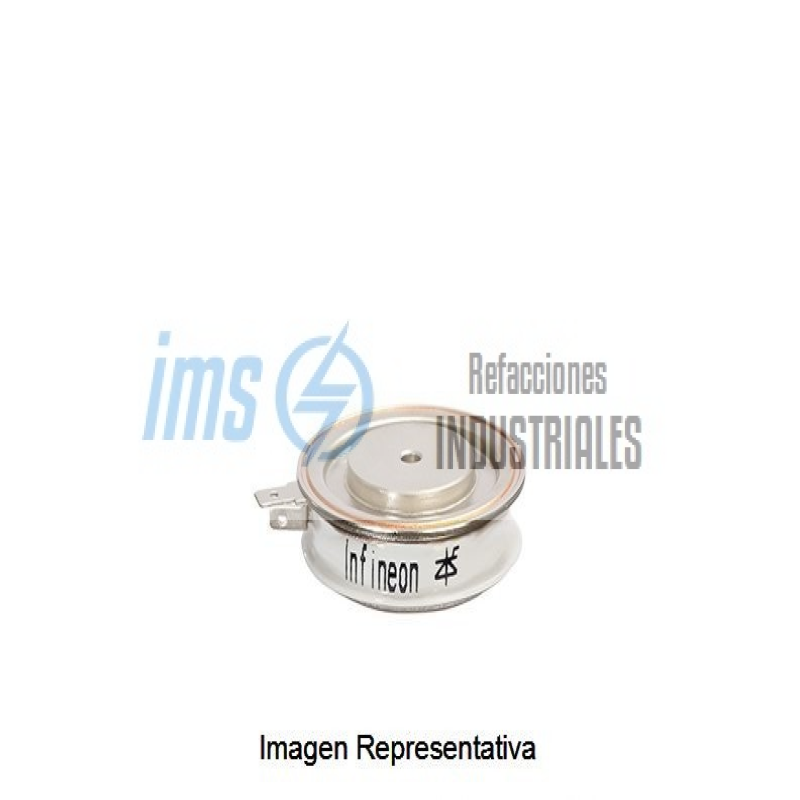

T580N06TOF

Infineon, Formerly Eupec Phase Control SCRs, T580N Series

Infineon, Formerly Eupec

T580N06TOF

SCR,TO-200AB-1,600V,568A ; Package Style; TO-200AB-1

Vrrm (volts); 600 Volts

Vdrm (volts); 600 Volts

It (rms) Amps; 1220 Amps

It (avg) Amps; 568 Amps

Itsm Amps; 6300 Amps

di/dt (A/microseconds); 200

dv/dt (V/microseconds); 1000

I2T@50Hz (A2Sec); 198000

Vtm (volts); 1.63 Volts

tq (microseconds); 200 MicroSeconds

Irrm Peak (mA); 30 MilliAmps

Idrm Peak (mA); 30 MilliAmps

Igt (mA); 150 MilliAmps

Vgt (volts); 1.4 Volts

Puck Size (h x dia.) in.; 0.57x1.65

Junction Temp.; 140 Degrees F

Mounting Force; 3~6 kN ;
